순환신경망 minor topics

강의영상

https://youtube.com/playlist?list=PLQqh36zP38-zvqUvbaN9PkKWMHadj8B3W

imports

import torch
import pandas as pd
import matplotlib.pyplot as plt
from fastai.text.all import *
import pytorch_lightning as pl

Define some funtions

def f(txt,mapping):
    return [mapping[key] for key in txt]
sig = torch.nn.Sigmoid()
soft = torch.nn.Softmax(dim=1)
tanh = torch.nn.Tanh()

순환신경망 표현력 비교실험 (1)

data: abcabC

txt = list('abcabC')*100
txt[:8]
txt_x = txt[:-1]
txt_y = txt[1:]

mapping = {'a':0,'b':1,'c':2,'C':3}
x= torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float()
y= torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float()

x = x.to("cuda:0")
y = y.to("cuda:0")

x.shape

torch.Size([599, 4])

실험

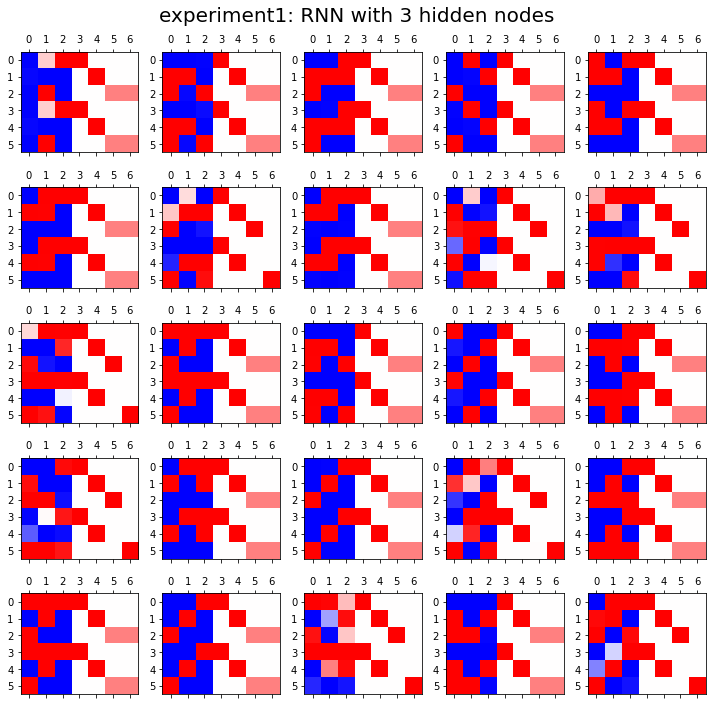

- 실험1

HIDDEN = 3

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        rnn = torch.nn.RNN(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(rnn.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, hT = rnn(x,_water)
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combind = torch.concat([hidden,yhat],axis=1)
        ax[i][j].matshow(combind.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment1: RNN with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

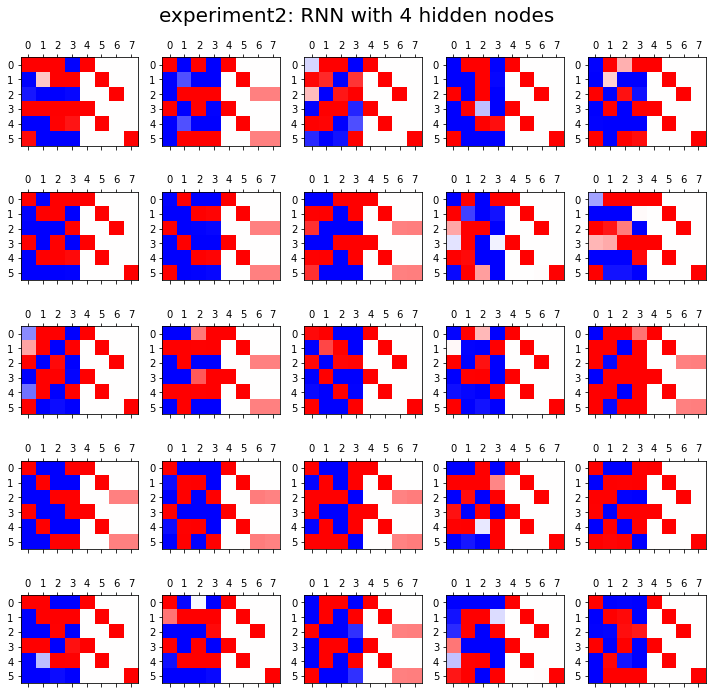

- 실험2

HIDDEN = 4

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        rnn = torch.nn.RNN(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(rnn.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, hT = rnn(x,_water)
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combind = torch.concat([hidden,yhat],axis=1)
        ax[i][j].matshow(combind.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment2: RNN with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

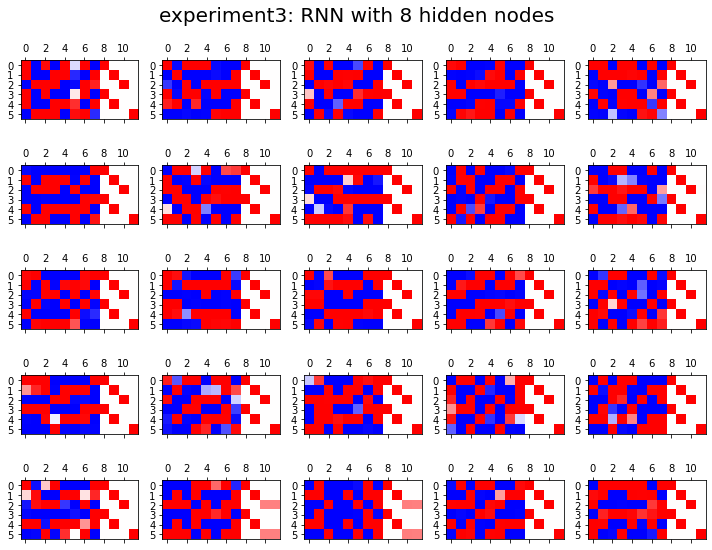

- 실험3

HIDDEN = 8

fig, ax = plt.subplots(5,5,figsize=(10,8))
for i in range(5):
    for j in range(5):
        rnn = torch.nn.RNN(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(rnn.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, hT = rnn(x,_water)
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combind = torch.concat([hidden,yhat],axis=1)
        ax[i][j].matshow(combind.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment3: RNN with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

결론

- 노드수가 많으면 학습에 유리함

순환신경망 표현력 비교실험 (2)

data: ab(c,C)

# torch.manual_seed(43052)
# txta = 'a'*50
# txtb = 'b'*50
# prob_upper = torch.bernoulli(torch.zeros(50)+0.5)
# txtc = list(map(lambda x: 'c' if x==1 else 'C', prob_upper))
# txt = ''.join([txta[i]+','+txtb[i]+','+txtc[i]+',' for i in range(50)]).split(',')[:-1]
# txt_x = txt[:-1]
# txt_y = txt[1:]
# pd.DataFrame({'txt_x':txt_x,'txt_y':txt_y}).to_csv("2022-11-25-ab(c,C).csv",index=False)

df= pd.read_csv("https://raw.githubusercontent.com/guebin/DL2022/main/posts/IV.%20RNN/2022-11-25-ab(c%2CC).csv")
df

	txt_x	txt_y
0	a	b
1	b	c
2	c	a
3	a	b
4	b	c
...	...	...
144	a	b
145	b	C
146	C	a
147	a	b
148	b	c

149 rows × 2 columns

mapping = {'a':0,'b':1,'c':2,'C':3}
x= torch.nn.functional.one_hot(torch.tensor(f(df.txt_x,mapping))).float()
y= torch.nn.functional.one_hot(torch.tensor(f(df.txt_y,mapping))).float()

x = x.to("cuda:0")
y = y.to("cuda:0")

실험

- 실험1

HIDDEN = 3

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        lstm = torch.nn.LSTM(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, (hT,cT) = lstm(x,(_water,_water))
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combinded = torch.concat([yhat,y],axis=1)
        ax[i][j].matshow(combinded.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment1: LSTM with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

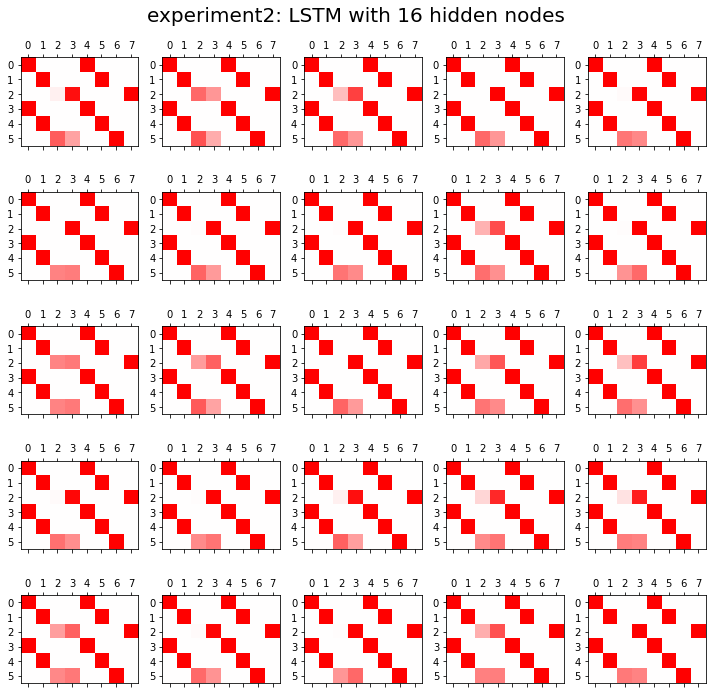

- 실험2

HIDDEN = 16

fig, ax = plt.subplots(5,5,figsize=(10,10))
for i in range(5):
    for j in range(5):
        lstm = torch.nn.LSTM(4,HIDDEN).to("cuda:0")
        linr = torch.nn.Linear(HIDDEN,4).to("cuda:0")
        loss_fn = torch.nn.CrossEntropyLoss()
        optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)
        _water = torch.zeros(1,HIDDEN).to("cuda:0")
        for epoc in range(500):
            ## 1
            hidden, (hT,cT) = lstm(x,(_water,_water))
            output = linr(hidden)
            ## 2
            loss = loss_fn(output,y)
            ## 3
            loss.backward()
            ## 4
            optimizr.step()
            optimizr.zero_grad()
        yhat=soft(output)
        combinded = torch.concat([yhat,y],axis=1)
        ax[i][j].matshow(combinded.to("cpu").data[-6:],cmap='bwr',vmin=-1,vmax=1)
fig.suptitle("experiment2: LSTM with {} hidden nodes".format(HIDDEN),size=20)
fig.tight_layout()

결론

- 노드수가 너무 많으면 오버피팅 경향도 있음

문자열에서 단어로

data: human numbers 5

txt = (['one',',','two',',','three',',','four',',','five',',']*100)[:-1]

mapping = {',':0, 'one':1, 'two':2, 'three':3, 'four':4, 'five':5}
mapping

{',': 0, 'one': 1, 'two': 2, 'three': 3, 'four': 4, 'five': 5}

txt_x = txt[:-1]
txt_y = txt[1:]

txt_x[0:5], txt_y[0:5]

(['one', ',', 'two', ',', 'three'], [',', 'two', ',', 'three', ','])

x = torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float().to("cuda:0")
y = torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float().to("cuda:0")

torch를 이용한 learn

torch.manual_seed(43052)
lstm = torch.nn.LSTM(6,20).to("cuda:0")
linr = torch.nn.Linear(20,6).to("cuda:0")
loss_fn = torch.nn.CrossEntropyLoss()
optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)

_water = torch.zeros(1,20).to("cuda:0")
for epoc in range(50):
    ## 1
    hidden, (hT,cT) =lstm(x,(_water,_water))
    output = linr(hidden)
    ## 2
    loss = loss_fn(output,y)
    ## 3
    loss.backward()
    ## 4
    optimizr.step()
    optimizr.zero_grad()

plt.matshow(soft(output).data[-10:].to("cpu"),cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7f6bbf69b890>

fastai 이용한 learn

ds1 = torch.utils.data.TensorDataset(x,y)
ds2 = torch.utils.data.TensorDataset(x,y) # dummy
dl1 = torch.utils.data.DataLoader(ds1,batch_size=998)
dl2 = torch.utils.data.DataLoader(ds2,batch_size=998) # dummy
dls = DataLoaders(dl1,dl2)

class MyLSTM(torch.nn.Module):
    def __init__(self):
        super().__init__()
        self.lstm = torch.nn.LSTM(6,20)
        self.linr = torch.nn.Linear(20,6)
    def forward(self,x):
        _water = torch.zeros(1,20).to("cuda:0")
        hidden, (hT,cT) =self.lstm(x,(_water,_water))
        output = self.linr(hidden)
        return output

net = MyLSTM().to("cuda:0")
loss_fn = torch.nn.CrossEntropyLoss()

lrnr = Learner(dls,net,loss_fn,lr=0.1)

lrnr.fit(50)

epoch	train_loss	valid_loss	time
0	1.918821	1.547683	00:00
1	1.731377	1.771274	00:00
2	1.744945	1.490624	00:00
3	1.679425	1.400951	00:00
4	1.621457	1.431488	00:00
5	1.588175	1.398044	00:00
6	1.559340	1.291965	00:00
7	1.523507	1.127941	00:00
8	1.475921	0.959611	00:00
9	1.419471	0.861778	00:00
10	1.363497	0.815888	00:00
11	1.312624	0.780459	00:00
12	1.266544	0.742232	00:00
13	1.223979	0.715809	00:00
14	1.185103	0.671282	00:00
15	1.147897	0.620188	00:00
16	1.111588	0.575581	00:00
17	1.076424	0.529901	00:00
18	1.042135	0.475089	00:00
19	1.008015	0.418487	00:00
20	0.973913	0.368120	00:00
21	0.940148	0.322788	00:00
22	0.906926	0.285818	00:00
23	0.874595	0.254371	00:00
24	0.843313	0.218208	00:00
25	0.812716	0.187723	00:00
26	0.782985	0.158780	00:00
27	0.754088	0.133884	00:00
28	0.726112	0.112403	00:00
29	0.699107	0.093460	00:00
30	0.673082	0.075678	00:00
31	0.647987	0.059713	00:00
32	0.623807	0.047068	00:00
33	0.600592	0.037162	00:00
34	0.578363	0.029585	00:00
35	0.557125	0.023816	00:00
36	0.536864	0.019337	00:00
37	0.517551	0.015811	00:00
38	0.499145	0.013043	00:00
39	0.481606	0.010892	00:00
40	0.464891	0.009220	00:00
41	0.448957	0.007893	00:00
42	0.433761	0.006812	00:00
43	0.419261	0.005925	00:00
44	0.405417	0.005203	00:00
45	0.392191	0.004621	00:00
46	0.379547	0.004154	00:00
47	0.367454	0.003775	00:00
48	0.355879	0.003463	00:00
49	0.344794	0.003202	00:00

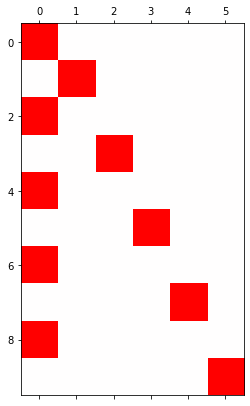

plt.matshow(soft(lrnr.model(x)[-10:]).data.to("cpu"),cmap = 'bwr', vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7f6bbbb779d0>

똑같은 코드들: `torch.nn.LSTM`

data: hi?hello!!

txt = list('hi?hello!!')*100
txt_x = txt[:-1]
txt_y = txt[1:]

mapping = {'!':0, '?':1,'h':2,'i':3,'e':4,'l':5,'o':6}
x= torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float().to("cuda:0")
y= torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float().to("cuda:0")

세트1: _water의 생략

- 코드1: 정석코드

torch.manual_seed(43052)
lstm = torch.nn.LSTM(7,4).to("cuda:0")

_water = torch.zeros(1,4).to("cuda:0")
lstm(x, (_water,_water))

(tensor([[-0.1547,  0.0673,  0.0695,  0.1563],
         [-0.0786, -0.1430, -0.0250,  0.1189],
         [-0.0300, -0.2256, -0.1324,  0.1439],
         ...,
         [-0.0723,  0.0620,  0.1913,  0.2015],
         [-0.1155,  0.0746,  0.1747,  0.2938],
         [-0.2350, -0.1559, -0.1093,  0.2682]], device='cuda:0',
        grad_fn=<SqueezeBackward1>),
 (tensor([[-0.2350, -0.1559, -0.1093,  0.2682]], device='cuda:0',
         grad_fn=<SqueezeBackward1>),
  tensor([[-0.4451, -0.2456, -0.1900,  0.6232]], device='cuda:0',
         grad_fn=<SqueezeBackward1>)))

- 코드2: _water 는 사실 없어도 괜찮았어..

torch.manual_seed(43052)
lstm = torch.nn.LSTM(7,4).to("cuda:0")

lstm(x)

(tensor([[-0.1547,  0.0673,  0.0695,  0.1563],
         [-0.0786, -0.1430, -0.0250,  0.1189],
         [-0.0300, -0.2256, -0.1324,  0.1439],
         ...,
         [-0.0723,  0.0620,  0.1913,  0.2015],
         [-0.1155,  0.0746,  0.1747,  0.2938],
         [-0.2350, -0.1559, -0.1093,  0.2682]], device='cuda:0',
        grad_fn=<SqueezeBackward1>),
 (tensor([[-0.2350, -0.1559, -0.1093,  0.2682]], device='cuda:0',
         grad_fn=<SqueezeBackward1>),
  tensor([[-0.4451, -0.2456, -0.1900,  0.6232]], device='cuda:0',
         grad_fn=<SqueezeBackward1>)))

세트2: x.shape = (\(L\), \(H_{in}\)) or (\(L\),\(N\),\(H_{in}\))

- 파라메터 설명

\(L\) = sequece length = 시계열의 길이 = 간장을 몇 년 전통으로 이어갈지
\(N\) = batch size = 전체데이터는 몇 개의 시계열이 있는지 = 전체 데이터를 몇개의 시계열로 쪼갤지 <– 왜 이걸 해야해?
\(H_{in}\) = input_size = 시점을 고정하였을 경우 입력자료의 차원 = 입력시계열이 시점별로 몇개의 변수로 나타내어 지는지? = 만약에 원핫인코딩으로 단어를 정리하면 단어수를 의미함

- 코드2: _water 는 사실 없어도 괜찮았어..

torch.manual_seed(43052)
lstm = torch.nn.LSTM(7,4).to("cuda:0")

lstm(x)

(tensor([[-0.1547,  0.0673,  0.0695,  0.1563],
         [-0.0786, -0.1430, -0.0250,  0.1189],
         [-0.0300, -0.2256, -0.1324,  0.1439],
         ...,
         [-0.0723,  0.0620,  0.1913,  0.2015],
         [-0.1155,  0.0746,  0.1747,  0.2938],
         [-0.2350, -0.1559, -0.1093,  0.2682]], device='cuda:0',
        grad_fn=<SqueezeBackward1>),
 (tensor([[-0.2350, -0.1559, -0.1093,  0.2682]], device='cuda:0',
         grad_fn=<SqueezeBackward1>),
  tensor([[-0.4451, -0.2456, -0.1900,  0.6232]], device='cuda:0',
         grad_fn=<SqueezeBackward1>)))

- 코드3: x의 차원은 사실 엄밀하게는 (\(L\),\(N\),\(H_{in}\)) 와 같다…

torch.manual_seed(43052)
lstm = torch.nn.LSTM(7,4).to("cuda:0")

lstm(x.reshape(999,1,7))

(tensor([[[-0.1547,  0.0673,  0.0695,  0.1563]],

         [[-0.0786, -0.1430, -0.0250,  0.1189]],

         [[-0.0300, -0.2256, -0.1324,  0.1439]],

         ...,

         [[-0.0723,  0.0620,  0.1913,  0.2015]],

         [[-0.1155,  0.0746,  0.1747,  0.2938]],

         [[-0.2350, -0.1559, -0.1093,  0.2682]]], device='cuda:0',
        grad_fn=<CudnnRnnBackward0>),
 (tensor([[[-0.2350, -0.1559, -0.1093,  0.2682]]], device='cuda:0',
         grad_fn=<CudnnRnnBackward0>),
  tensor([[[-0.4451, -0.2456, -0.1900,  0.6232]]], device='cuda:0',
         grad_fn=<CudnnRnnBackward0>)))

- 코드4: batch_first=True옵션을 사용하여 lstm을 만든경우

torch.manual_seed(43052)
lstm = torch.nn.LSTM(7,4,batch_first=True).to("cuda:0")

lstm(x.reshape(1,999,7))

(tensor([[[-0.1547,  0.0673,  0.0695,  0.1563],
          [-0.0786, -0.1430, -0.0250,  0.1189],
          [-0.0300, -0.2256, -0.1324,  0.1439],
          ...,
          [-0.0723,  0.0620,  0.1913,  0.2015],
          [-0.1155,  0.0746,  0.1747,  0.2938],
          [-0.2350, -0.1559, -0.1093,  0.2682]]], device='cuda:0',
        grad_fn=<CudnnRnnBackward0>),
 (tensor([[[-0.2350, -0.1559, -0.1093,  0.2682]]], device='cuda:0',
         grad_fn=<CudnnRnnBackward0>),
  tensor([[[-0.4451, -0.2456, -0.1900,  0.6232]]], device='cuda:0',
         grad_fn=<CudnnRnnBackward0>)))

세트3: hidden.shape = (\(D\times\) `num_layers`, \(H_{out}\)) or (\(D\times\) `num_layers`, \(N\), \(H_{out}\))

- 파라메터 설명

\(D\) = 2 if bidirectional=True otherwise 1 = 양방향이면 2, 단방향이면 1 (우리는 단방향만 배움)
num_layres = 중첩된 RNN일 경우 (우리는 중첩을 안시켰음)
\(N\) = batch size = 전체데이터는 몇 개의 시계열이 있는지 = 전체 데이터를 몇개의 시계열로 쪼갤지 <– 왜 이걸 해야해?
\(H_{out}\) = 히든노드의 수

- 코드5: x.shape = (\(L\),\(1\),\(H_{in}\)) \(\to\) hidden.shape = (\(1\),\(1\),\(H_{out}\))

torch.manual_seed(43052)
lstm = torch.nn.LSTM(7,4).to("cuda:0")

_water = torch.zeros(1,1,4).to("cuda:0")
lstm(x.reshape(999,1,7),(_water,_water))

(tensor([[[-0.1547,  0.0673,  0.0695,  0.1563]],

         [[-0.0786, -0.1430, -0.0250,  0.1189]],

         [[-0.0300, -0.2256, -0.1324,  0.1439]],

         ...,

         [[-0.0723,  0.0620,  0.1913,  0.2015]],

         [[-0.1155,  0.0746,  0.1747,  0.2938]],

         [[-0.2350, -0.1559, -0.1093,  0.2682]]], device='cuda:0',
        grad_fn=<CudnnRnnBackward0>),
 (tensor([[[-0.2350, -0.1559, -0.1093,  0.2682]]], device='cuda:0',
         grad_fn=<CudnnRnnBackward0>),
  tensor([[[-0.4451, -0.2456, -0.1900,  0.6232]]], device='cuda:0',
         grad_fn=<CudnnRnnBackward0>)))

- 사실 _water.shape = (1,\(H_{out}\)) 에서 1은 observation의 차원을 의미하는게 아님 (그런데 대충 그렇게 생각해도 무방함)

한 시점의 콩물에 대하여 양방향으로 간장을 만들면 _water.shape = (2,h)
한 시점의 콩물에 대하여 3중첩으로 간장을 만들면 _water.shape = (3,h)
한 시점의 콩물에 대하여 3중첩간장을 양방향으로 만들면 _water.shape = (6,h)

똑같은 코드들: `torch.nn.LSTMCell`

data: hi?hello!!

txt = list('hi?hello!!')*100
txt_x = txt[:-1]
txt_y = txt[1:]

mapping = {'!':0, '?':1,'h':2,'i':3,'e':4,'l':5,'o':6}
x= torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float().to("cuda:0")
y= torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float().to("cuda:0")

세트1: _water의 생략

- 코드1: 정석코드

torch.manual_seed(43052)
lstmcell = torch.nn.LSTMCell(7,4).to("cuda:0")

xt = x[[1]]
_water = torch.zeros(1,4).to("cuda:0")
xt.shape, _water.shape

(torch.Size([1, 7]), torch.Size([1, 4]))

lstmcell(xt,(_water,_water))

(tensor([[-0.0290, -0.1758, -0.0537,  0.0598]], device='cuda:0',
        grad_fn=<ThnnFusedLstmCellBackward0>),
 tensor([[-0.0582, -0.4566, -0.1256,  0.1922]], device='cuda:0',
        grad_fn=<ThnnFusedLstmCellBackward0>))

- 코드2: _water의 생략

torch.manual_seed(43052)
lstmcell = torch.nn.LSTMCell(7,4).to("cuda:0")

xt = x[[1]]
xt.shape

torch.Size([1, 7])

lstmcell(xt)

(tensor([[-0.0290, -0.1758, -0.0537,  0.0598]], device='cuda:0',
        grad_fn=<ThnnFusedLstmCellBackward0>),
 tensor([[-0.0582, -0.4566, -0.1256,  0.1922]], device='cuda:0',
        grad_fn=<ThnnFusedLstmCellBackward0>))

세트2: xt.shape = (\(N\),\(H_{in}\)) or (\(H_{in}\))

- 코드2: _water의 생략

torch.manual_seed(43052)
lstmcell = torch.nn.LSTMCell(7,4).to("cuda:0")

xt = x[[1]]
xt.shape

torch.Size([1, 7])

lstmcell(xt)

(tensor([[-0.0290, -0.1758, -0.0537,  0.0598]], device='cuda:0',
        grad_fn=<ThnnFusedLstmCellBackward0>),
 tensor([[-0.0582, -0.4566, -0.1256,  0.1922]], device='cuda:0',
        grad_fn=<ThnnFusedLstmCellBackward0>))

- 코드3:

torch.manual_seed(43052)
lstmcell = torch.nn.LSTMCell(7,4).to("cuda:0")

xt = x[1]
xt.shape

torch.Size([7])

lstmcell(xt)

(tensor([-0.0290, -0.1758, -0.0537,  0.0598], device='cuda:0',
        grad_fn=<SqueezeBackward1>),
 tensor([-0.0582, -0.4566, -0.1256,  0.1922], device='cuda:0',
        grad_fn=<SqueezeBackward1>))

세트3: hidden.shape = (\(N\),\(H_{out}\)) or (\(H_{out}\))

- 코드4: xt.shape = (\(H_{in}\)) \(\to\) _water.shape = \((H_{out})\)

torch.manual_seed(43052)
lstmcell = torch.nn.LSTMCell(7,4).to("cuda:0")

xt = x[1]
_water = torch.zeros(4).to("cuda:0")
xt.shape,_water.shape

(torch.Size([7]), torch.Size([4]))

lstmcell(xt, (_water,_water))

(tensor([-0.0290, -0.1758, -0.0537,  0.0598], device='cuda:0',
        grad_fn=<SqueezeBackward1>),
 tensor([-0.0582, -0.4566, -0.1256,  0.1922], device='cuda:0',
        grad_fn=<SqueezeBackward1>))

Summary

똑같은 코드들 정리

- 원래 1은 단순히 observation의 차원이 아니다. 즉 \({\bf X}_{n \times p}\)에서 \(n\)에 대응하는 차원으로 생각할 수 없다.

- 그런데 (1) 단방향 (2) 조각내지 않은 시계열 (3) 중첩하지 않은 순환망에 한정하여서는 observation 처럼 생각해도 무방하다. <– 엄밀하게는 이게 위험한 생각임. 하지만 정식으로 모두 따지려면 너무 헷갈림

실제구현시 기억할 것

- 현실적으로 (1)-(3)이 아닌 조건에서는 Cell 단위로 연산을 이용할 일이 없다. (느리거든요) // 그냥 이해용으로 구현

- torch.nn.RNN 혹은 torch.nn.LSTM 으로 네트워크를 구성할시 _water의 dim을 명시할 일도 없다.

- 오로지 고려해야 할 것은 입력시계열을 조각낼지 조각내지 않을지

조각난 시계열로 학습

data

txt = list('hi!')*3 + list('hi?')*3

조각내지 않은 시계열

txt_x = txt[:-1]
txt_y = txt[1:]

mapping = {'!':0, '?':1, 'h':2, 'i':3}
x = torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float().to("cuda:0")
y = torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float().to("cuda:0")

torch.manual_seed(43052)
lstm = torch.nn.LSTM(4,10).to("cuda:0")
linr = torch.nn.Linear(10,4).to("cuda:0")

loss_fn = torch.nn.CrossEntropyLoss()
optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)

for epoc in range(100):
    ## 1
    hidden, _ = lstm(x)
    output = linr(hidden)
    ## 2
    loss = loss_fn(output,y)
    ## 3
    loss.backward()
    ## 4
    optimizr.step()
    optimizr.zero_grad()

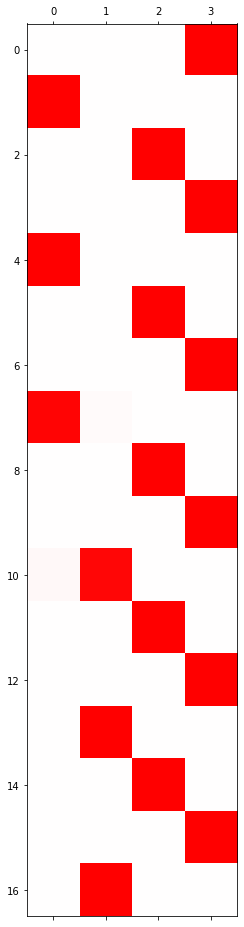

hidden, _ = lstm(x)
plt.matshow(soft(linr(hidden)).to("cpu").data,cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7f6b994a6f50>

조각난 시계열

txt1= txt[:9]
txt2= txt[9:]

txt1,txt2

(['h', 'i', '!', 'h', 'i', '!', 'h', 'i', '!'],
 ['h', 'i', '?', 'h', 'i', '?', 'h', 'i', '?'])

txt1_x = txt1[:-1]
txt1_y = txt1[1:]
txt2_x = txt2[:-1]
txt2_y = txt2[1:]

mapping = {'!':0, '?':1, 'h':2, 'i':3}
x1 = torch.nn.functional.one_hot(torch.tensor(f(txt1_x,mapping))).float().to("cuda:0")
y1 = torch.nn.functional.one_hot(torch.tensor(f(txt1_y,mapping))).float().to("cuda:0")
x2 = torch.nn.functional.one_hot(torch.tensor(f(txt2_x,mapping))).float().to("cuda:0")
y2 = torch.nn.functional.one_hot(torch.tensor(f(txt2_y,mapping))).float().to("cuda:0")

x1.shape, y1.shape, x2.shape, y2.shape

(torch.Size([8, 4]),
 torch.Size([8, 4]),
 torch.Size([8, 4]),
 torch.Size([8, 4]))

xx = torch.stack([x1,x2],axis=1)
yy = torch.stack([y1,y2],axis=1)
xx.shape, yy.shape

(torch.Size([8, 2, 4]), torch.Size([8, 2, 4]))

torch.manual_seed(43052)
lstm = torch.nn.LSTM(4,10).to("cuda:0")
linr = torch.nn.Linear(10,4).to("cuda:0")

loss_fn = torch.nn.CrossEntropyLoss()
optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)

for epoc in range(100):
    ## 1
    hidden, _ = lstm(xx)
    output = linr(hidden)
    ## 2
    loss = loss_fn(output[:,0,:],yy[:,0,:]) + loss_fn(output[:,1,:],yy[:,1,:])
    ## 3
    loss.backward()
    ## 4
    optimizr.step()
    optimizr.zero_grad()

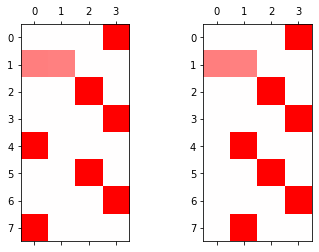

fig , ax = plt.subplots(1,2)
ax[0].matshow(soft(output[:,0,:]).to("cpu").data,cmap='bwr',vmin=-1,vmax=1)
ax[1].matshow(soft(output[:,1,:]).to("cpu").data,cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7f6b70111650>

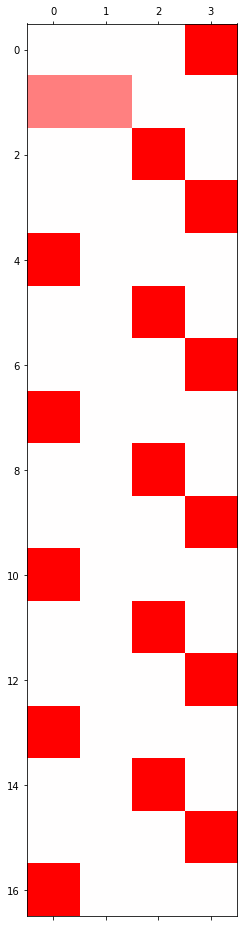

hidden, _ = lstm(x)
plt.matshow(soft(linr(hidden)).to("cpu").data,cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7f6b70111350>

- 조각난 시계열로 학습한 경우는 hi!에서 hi?로 바뀔 수 없다. 왜냐햐면 그러한 연결정보가 끊어져 있으니까

재미있는 실험

- x1만 배운다면?

torch.manual_seed(43052)
lstm = torch.nn.LSTM(4,10).to("cuda:0")
linr = torch.nn.Linear(10,4).to("cuda:0")

loss_fn = torch.nn.CrossEntropyLoss()
optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)

for epoc in range(100):
    ## 1
    hidden, _ = lstm(x1)
    output = linr(hidden)
    ## 2
    loss = loss_fn(output,y1)
    ## 3
    loss.backward()
    ## 4
    optimizr.step()
    optimizr.zero_grad()

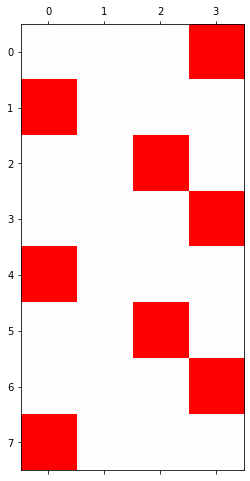

hidden, _ = lstm(x2)
plt.matshow(soft(linr(hidden)).to("cpu").data,cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7f6b701ba890>

- x2만 배운다면?

torch.manual_seed(43052)
lstm = torch.nn.LSTM(4,10).to("cuda:0")
linr = torch.nn.Linear(10,4).to("cuda:0")

loss_fn = torch.nn.CrossEntropyLoss()
optimizr = torch.optim.Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)

for epoc in range(100):
    ## 1
    hidden, _ = lstm(x2)
    output = linr(hidden)
    ## 2
    loss = loss_fn(output,y2)
    ## 3
    loss.backward()
    ## 4
    optimizr.step()
    optimizr.zero_grad()

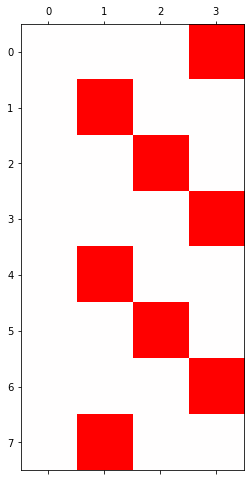

hidden, _ = lstm(x1)
plt.matshow(soft(linr(hidden)).to("cpu").data,cmap='bwr',vmin=-1,vmax=1)

<matplotlib.image.AxesImage at 0x7f6b9809ef50>

똑같은 코드들 fastai, pytorch

data: human numbers 5

txt = (['one',',','two',',','three',',','four',',','five',',']*100)[:-1]

mapping = {',':0, 'one':1, 'two':2, 'three':3, 'four':4, 'five':5}
mapping

{',': 0, 'one': 1, 'two': 2, 'three': 3, 'four': 4, 'five': 5}

txt_x = txt[:-1]
txt_y = txt[1:]

txt_x[0:5], txt_y[0:5]

(['one', ',', 'two', ',', 'three'], [',', 'two', ',', 'three', ','])

x = torch.nn.functional.one_hot(torch.tensor(f(txt_x,mapping))).float().to("cuda:0")
y = torch.nn.functional.one_hot(torch.tensor(f(txt_y,mapping))).float().to("cuda:0")

fastai 이용한 learn

ds1 = torch.utils.data.TensorDataset(x,y)
ds2 = torch.utils.data.TensorDataset(x,y) # dummy
dl1 = torch.utils.data.DataLoader(ds1,batch_size=998)
dl2 = torch.utils.data.DataLoader(ds2,batch_size=998) # dummy
dls = DataLoaders(dl1,dl2)

class MyLSTM(torch.nn.Module):
    def __init__(self):
        super().__init__()
        torch.manual_seed(43052)
        self.lstm = torch.nn.LSTM(6,20)
        self.linr = torch.nn.Linear(20,6)
    def forward(self,x):
        _water = torch.zeros(1,20).to("cuda:0")
        hidden, (hT,cT) =self.lstm(x,(_water,_water))
        output = self.linr(hidden)
        return output

net = MyLSTM().to("cuda:0")
loss_fn = torch.nn.CrossEntropyLoss()

lrnr = Learner(dls,net,loss_fn,lr=0.1)

lrnr.fit(10)

epoch	train_loss	valid_loss	time
0	1.762846	1.502211	00:00
1	1.631212	1.620583	00:00
2	1.627597	1.443686	00:00
3	1.580216	1.368762	00:00
4	1.536200	1.307310	00:00
5	1.496099	1.216339	00:00
6	1.453670	1.113821	00:00
7	1.408125	1.019931	00:00
8	1.361426	0.941434	00:00
9	1.315507	0.884034	00:00

soft(lrnr.model(x)).data.to("cpu").numpy().round(3)

array([[0.935, 0.009, 0.015, 0.011, 0.016, 0.014],
       [0.133, 0.164, 0.242, 0.172, 0.141, 0.147],
       [0.982, 0.003, 0.004, 0.003, 0.004, 0.003],
       ...,
       [0.122, 0.171, 0.242, 0.174, 0.146, 0.144],
       [0.984, 0.003, 0.004, 0.002, 0.004, 0.003],
       [0.119, 0.172, 0.244, 0.175, 0.144, 0.145]], dtype=float32)

torch를 이용한 learn

torch.manual_seed(43052)
lstm = torch.nn.LSTM(6,20).to("cuda:0")
linr = torch.nn.Linear(20,6).to("cuda:0")
loss_fn = torch.nn.CrossEntropyLoss()
optimizr = Adam(list(lstm.parameters())+list(linr.parameters()),lr=0.1)

for epoc in range(10):
    ## 1
    hidden, _ = lstm(x)
    output = linr(hidden)
    ## 2
    loss = loss_fn(output,y)
    ## 3
    loss.backward()
    ## 4
    optimizr.step()
    optimizr.zero_grad()

hidden, _ = lstm(x)
output = linr(hidden)
soft(output).data.to("cpu").numpy().round(3)

array([[0.935, 0.009, 0.015, 0.011, 0.016, 0.014],
       [0.133, 0.164, 0.242, 0.172, 0.141, 0.147],
       [0.982, 0.003, 0.004, 0.003, 0.004, 0.003],
       ...,
       [0.122, 0.171, 0.242, 0.174, 0.146, 0.144],
       [0.984, 0.003, 0.004, 0.002, 0.004, 0.003],
       [0.119, 0.172, 0.244, 0.175, 0.145, 0.145]], dtype=float32)

human numbers 100

df = pd.read_csv('https://raw.githubusercontent.com/guebin/DL2022/main/posts/IV.%20RNN/2022-11-25-human_numbers_100.csv')
df

	text
0	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
1	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
2	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
3	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
4	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
...	...
1995	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
1996	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
1997	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
1998	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...
1999	one, two, three, four, five, six, seven, eight, nine, ten, eleven, twelve, thirteen, fourteen, fifteen, sixteen, seventeen, eighteen, nineteen, twenty, twenty one, twenty two, twenty three, twenty four, twenty five, twenty six, twenty seven, twenty eight, twenty nine, thirty, thirty one, thirty two, thirty three, thirty four, thirty five, thirty six, thirty seven, thirty eight, thirty nine, forty, forty one, forty two, forty three, forty four, forty five, forty six, forty seven, forty eight, forty nine, fifty, fifty one, fifty two, fifty three, fifty four, fifty five, fifty six, fifty seve...

2000 rows × 1 columns

(1) dls 오브젝트 생성

dls = TextDataLoaders.from_df(df,is_lm=True,seq_len=5,text_col='text')
dls.show_batch()

	text	text_
0	xxbos one , two ,	one , two , three
1	hundred xxbos one , two	xxbos one , two ,
2	one hundred xxbos one ,	hundred xxbos one , two
3	, one hundred xxbos one	one hundred xxbos one ,
4	nine , one hundred xxbos	, one hundred xxbos one
5	ninety nine , one hundred	nine , one hundred xxbos
6	, ninety nine , one	ninety nine , one hundred
7	eight , ninety nine ,	, ninety nine , one
8	ninety eight , ninety nine	eight , ninety nine ,

(2) lrnr 오브젝트 생성

lrnr = language_model_learner(dls, arch= AWD_LSTM, metrics=accuracy)

(3) lrnr오브젝트에서 모형학습

lrnr.fine_tune(3)

epoch	train_loss	valid_loss	accuracy	time
0	0.534681	0.168856	0.977650	00:49

epoch	train_loss	valid_loss	accuracy	time
0	0.018749	0.003256	0.999205	00:54
1	0.001580	0.002430	0.999324	00:54
2	0.000651	0.002244	0.999315	00:54

(4) ‘one , two ,’ 이후에 이어질 50개의 단어생성.

lrnr.predict('one, two,', n_words=50)

'one , two , three , four , five , six , seven , eight , nine , ten , eleven , twelve , thirteen , fourteen , fifteen , sixteen , seventeen , eighteen , nineteen , twenty , twenty one , twenty two , twenty three , twenty four , twenty five'

(5) ‘twenty , twenty one ,’ 이후에 이어질 50개의 단어생성

lrnr.predict('twenty, twenty one,', n_words=50)

'twenty , twenty one , twenty two , twenty three , twenty four , twenty five , twenty six , twenty seven , twenty eight , twenty nine , thirty , thirty one , thirty two , thirty three , thirty four , thirty five , thirty six , thirty seven , thirty eight ,'

강의영상

imports

Define some funtions

순환신경망 표현력 비교실험 (1)

data: abcabC

실험

결론

순환신경망 표현력 비교실험 (2)

data: ab(c,C)

실험

결론

문자열에서 단어로

data: human numbers 5

torch를 이용한 learn

fastai 이용한 learn

똑같은 코드들: torch.nn.LSTM

data: hi?hello!!

세트1: _water의 생략

세트2: x.shape = (\(L\), \(H_{in}\)) or (\(L\),\(N\),\(H_{in}\))

세트3: hidden.shape = (\(D\times\) num_layers, \(H_{out}\)) or (\(D\times\) num_layers, \(N\), \(H_{out}\))

똑같은 코드들: torch.nn.LSTMCell

data: hi?hello!!

세트1: _water의 생략

세트2: xt.shape = (\(N\),\(H_{in}\)) or (\(H_{in}\))

세트3: hidden.shape = (\(N\),\(H_{out}\)) or (\(H_{out}\))

Summary

똑같은 코드들 정리

실제구현시 기억할 것

조각난 시계열로 학습

data

조각내지 않은 시계열

조각난 시계열

재미있는 실험

똑같은 코드들 fastai, pytorch

data: human numbers 5

fastai 이용한 learn

torch를 이용한 learn

human numbers 100

똑같은 코드들: `torch.nn.LSTM`

세트3: hidden.shape = (\(D\times\) `num_layers`, \(H_{out}\)) or (\(D\times\) `num_layers`, \(N\), \(H_{out}\))

똑같은 코드들: `torch.nn.LSTMCell`
